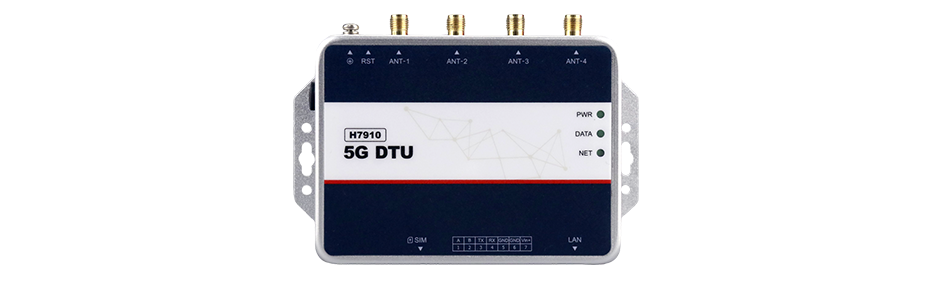

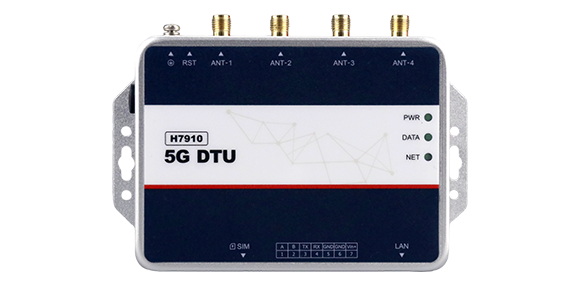

Hongdian H7910 5G Router

Product Introduction

The H7910 is developed on a high-performance hardware platform, supporting 5G RedCap, 5G LAN, and 5G SA/NSA networking, with backward compatibility for 4G/3G network standards, enabling more flexible deployment. For interfaces, it features Gigabit Ethernet ports, serial ports, wireless GPS (reserved), and other essential connectivity options. In terms of product design, it adopts a new industrial-grade structure with a smaller size, lighter weight, and enhanced adaptability. The H7910 caters to both traditional and emerging industries for compact, embedded 5G application scenarios.

Features Tech Specs Downloads

Advanced 5G Connectivity

· Supports 5G LAN, ultra-low latency, multi-channel dial-up, SA/NSA networks, and backward-compatible 4G/3G.

Industrial-Grade Interfaces

· Features Gigabit Ethernet, dual serial ports, routing, and serial DTU functionality.

Resilient Operation

· Dual hardware/software watchdogs with autonomous self-healing diagnostics.

Compact Embedded Design

· Minimal size/weight for space-constrained installations.

Hardware
CPU	MIPS1004Kc @880 MHz
RAM	128MB
FLASH	16MB
Cellular Interface
Modem	1 x 5G NR SA&NSA/4G LTE/WCDMA
Number of antennas	4
Connector	SMA-K
SIM	1 Mricro SIM card (optional esim 5X6)
Ethernet Interface
Number of ports	1
Configuration	1×WAN/LAN 10/100/1000Mbps, Gigabit Ethernet
Wireless interface
GPS interface	Optional
Number of antennas	1
Connector	SMA-K
Seiral interface
Type	1 RS-485, 1 RS-232
Socket form	1 x 7-pin 3.5 mm female socket
Signal definition	RX,TX,GND (RS-232) A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
Software
Auto fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Network	APN, VPDN, VLAN, QoS
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Attack Prevention	DDOS prevention, Anti port scanning
Ipsec Encryption	DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption	BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management	HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Sandora Platform, SDLAN
Serial ports function	Transparent, Modbus RTU, etc
Power Supply and Consumption
Power Connector	2-pin 3.5 mm Terminal
Voltage input	+9V+36V DC
Power consumption	Idle: 180mA@12V DC Data transceiving:300mA@12V DC
Others
Reset button	Yes
LED indicators	3 x indicators for PWR, NET, DATA
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP30
Housing & Weight	Aluminum shell, about 160g.
Dimension	111.3×71.4×22.4(mm)
Installations	Desktop, Wall Mounting
Operating temperature	-30 ~ +70 °C
Storage temperature	-45 ~ +90 °C
Relative humidity	5 ~ 95% RH
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
